Small Rotor Testing

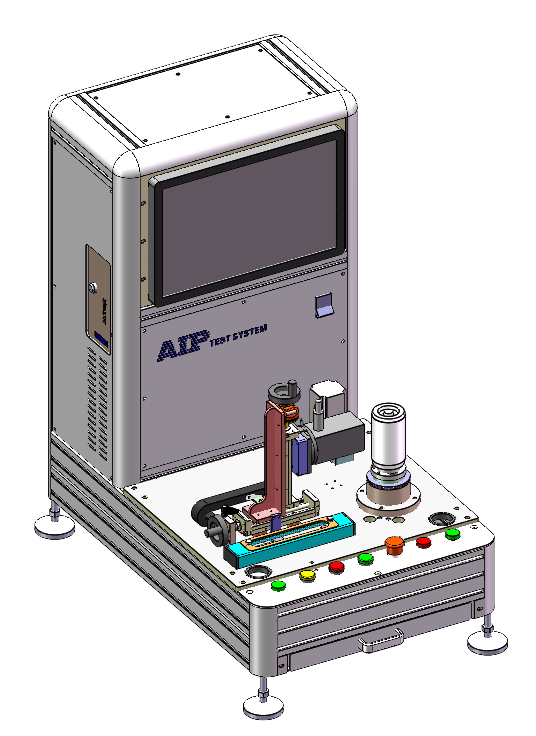

TST-R-150 — Small Rotor Testing Machine
Bar-by-bar electromagnetic scan for die-cast rotors up to 150mm height — precise non-destructive testing in seconds.
Detectable Defects
Interrupted Bars
Porosity & Blowholes
Cage Eccentricity
Bar Inclinations
Aluminium Alloy Quality
Leakage Blades
Porosity & Blowholes
Cage Eccentricity
Bar Inclinations
Aluminium Alloy Quality
Leakage Blades
Key Features
Rotor Dimensions
- Min. diameter: 40mm — Max. diameter: 90mm
- Min. height: 40mm — Max. height: 150mm
- Adapts to different sizes and production needs
Measurement Technology
Digital oscilloscope-based detection with advanced software for accurate bar-by-bar measurement in just a few seconds. Optional sample stator module for overall rotor efficiency assessment.
