Motor Test Bench

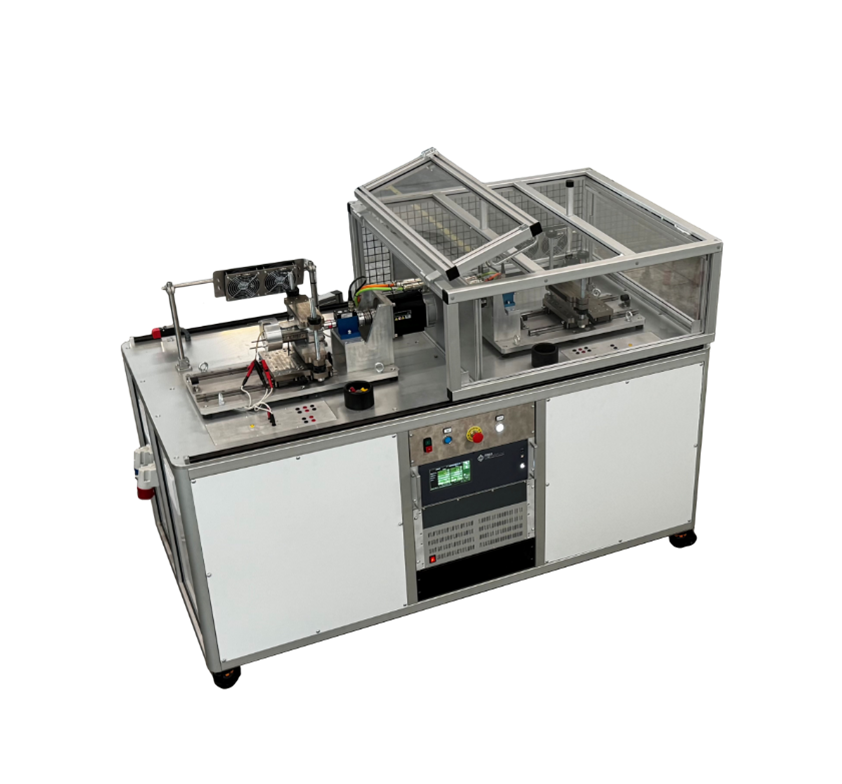

TST-F-LAB — Laboratory Motor Test Bench
Accurate torque, speed and thermal measurements for prototype development and end-of-line motor validation.
Key Features
Active Brake Configuration
- Brake 1: up to 1 Nm torque and 6000 RPM speed
- Brake 2: up to 10 Nm torque and 6000 RPM speed
- Other torque and speed configurations available on request
Flexible Power Supply
Single-phase and three-phase supply at 5000 VA, with customization available to meet specific test requirements. Software automatically manages capacitor connection for single-phase motor testing.
Delta T Thermal Measurement
Integrated Delta T instrument measures AC resistance variation to estimate stator temperature during the test cycle, eliminating the need for additional sensors.
Temperature Monitoring
Full thermocouple support (internal or external sensors) providing complete temperature monitoring capabilities throughout the test cycle.
